Pooja brings you the finest products designed and engineered by the people who have been in the same field for the last 30 years. Rectifier is an economical and most efficient method of obtaining DC from AC supply. We manufacture a wide range of rectifiers covering 0-500 Volts and upto 15000 Amps capacity suitable for Electroplating, Anodising, Hydrogenation, Cleaning, Etching, Stripping, Barreling and many other Electrochemical processes. The entire manufacturing process is under one roof ensuring 100% quality control at every stage of production. We believe in quality & customers satisfaction.

Brief Specifications
Input Voltage : 380-440 Volts, 3-phase 50hz. AC supply

Output Voltage : Fixed Rated maximum DC voltage or variable from zero to maximum rated voltage.
Output Current : Rated maximum DC current
Temperature Rise : Less then 350 C above ambient at the top of the oil.
Efficiency : 12V Rect - 82% , 24V Rect - 90%
100V Rect - 94%, 200V Rect - 96%
More than 250V Rect - More than 97%

Ripple Content : Less than 5%
Insulation : 'A' class for oil cooled.

Power Controller Power Controller

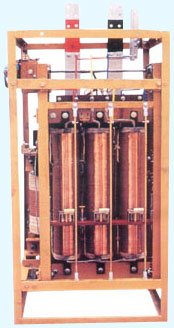

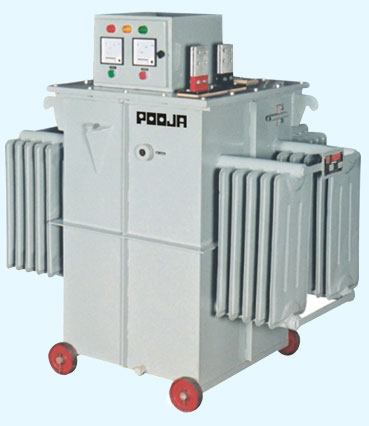

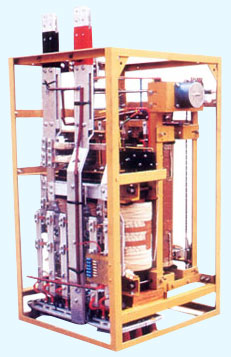

Inner View of Rectifier Inner View of Regulator

Starting Circuitry
Pooja's Rectifiers are designed for 3 phase 50 Hz AC input supply and are available for operations at any voltage between 380 and 440 volts, covering a wide range of voltage fluctuations. It is recommended that the input to the rectifier should be connected through a proper protective device, to provide positive protection to personnel and the system, in the event of maintaining or in case a fault occurs.

DC Output Control
The function of the variable output controls is to control the voltage or current or its operating range by varying input voltage to the main transformer primary. The DC output voltage variation is achieved steplessly 0-100% by means of an ON LOAD roller type voltage regulator.

Salient Feature
  1. Pooja's rectifier equipments are wound with electrolytic Prime grade italics to minimize power losses, in comparison to Aluminium italic conductor used by many other manufactures. Our equipments are designed liberally as per capacity and are ideally suitable for marginal over loading conductions.
  2. We use verticle Rolling contact type voltage regulator wound with heavy section of copper strips suitable for 100% continuous duty cycle for industrial applications, in comparison to conventional wire wound Regulators used by other manufacturers. The carbon rollers move on both sides of the winding.
  3. DIODE: Silicon diodes are tested in house, similar PIV batch and same forward drop diodes are used in the equipment for equal load sharing and reducing the power losses of diodes.
  4. LAMINATION CORE: We use imported CRGO Lamination core which have minimum power losses and results in better efficiency of equipment and saving in energy bill.
  5. PAINTS: Epoxy paint is used which is resistant to acidic environment of plating process and enhance the life of the equipment by preventing it from corrosion.
  6. METER: We use reputed make AE/RISHAB make DC meters only which are very accurate and durable.
  7. CONSTANT VOLTAGE CONTROLLER (CVC) (OPTIONAL) : We offer CVC Electronic attachment with rectifier equipments, which will maintain constant Output Voltage or Current as per setting automatically-irrespective of input voltage variation.
  8. SERVICING: We have maintained enviable reputation in market in after sales services. This fact can be verified from any of our customers.

Warranty
At POOJA we believe that customer satisfaction is a result of quality products complemented through a team of talented and skilled professionals in the power industry.

Our unmatched experience, commitment and network has made us the first organization in the industry to offer an UNCONDITIONAL FIVE YEARS WARRANTY. We do not charge anything for spares & service during this period. Visits to anywhere within India are undertaken free of cost in the warranty period.


Power Controller Power Controller

Advantage of Roller type Regulator as compared to Thyristorised Control

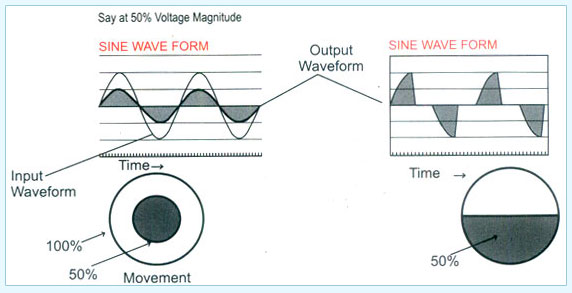

Power Controller Diagram

Roller Type Regulator Thyristorised Control

1. No wave form distortion at any load. Electrical wave form is like a moving wheel. For 50% Rated Voltage the Dia of wheel is reduced accordingly i.e. magnitude for a wave is decreased.

Wave form distortion. It is like cutting the wheel by 50% and then moving the wheel i.e. wave form is cut as shown at full magnitude.
2. Higher power factor of more than 0.95 is achieved. The power factor is lower between 0.5 to 0.9
3. The system is simple and can be repaired and maintained even by simple mechanic. The system is specified and needs specially trained Electronic Engineer to repair and maintain.
4. The cost of spares is very negligible. The cost of replacement is very high.
5. Over all losses are less. Over all losses are more

WHY THE REGULATOR CONTROL IS SUPERIOR TO THYRISTORISED CONTROL IN RECTIFIER
  1. In plating application the regulator is better and technology is adopted in Germany and Europe because of as explained above in point 1 to 5.
  2. Other rectifier manufacturers have shifted to thyristors because they have to use sliding carbon brush type regulators.
  3. Manufacturers of rectifiers claim that thyristor controlled rectifiers has been losses than regulator. They compare thyristor with sliding carbon type regulator. In our case their claim is not true. We use vertical coil type rolling carbon regulator. The copper section is three times so the losses are almost 1/6 or 20%.
  4. In our regulator the rollers move on both sides of the coil to give +- 440V or +-254V output. We design the rectifier in 'Q' connection in which the regulator current is half the current line so losses are less and life is much more.
